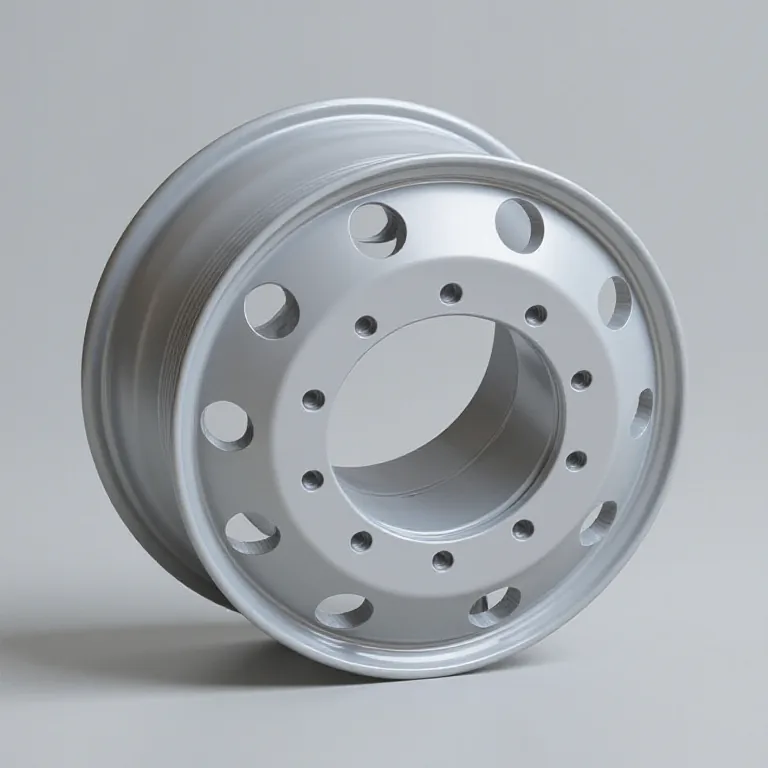

Tubeless Truck Wheel Rim 22.5 × 8.25

Description

Tubeless wheel rim 22.5 × 8.25 for 11R22.5, 295/80R22.5, 295/75R22.5 tyres. Tractor heads, heavy rigid trucks and semi-trailers — the most common tubeless size on HOWO and Shacman long-haul trucks.

Construction & fitment

• Construction: One-piece drop-centre rim, 15° tapered bead seat (tubeless).
• Tyre sizes: 11R22.5, 295/80R22.5, 295/75R22.5.
• Stud pattern: 10 studs, PCD 335 mm, centre bore 281 mm (ISO hub-piloted — standard on HOWO, Shacman and European trucks). JIS 10 × 285.75 mm and other patterns on request.
• Material: High-strength steel (standard) or forged aluminium (lighter, on request), shot-blasted and powder-coated.
• Offset: single or dual-wheel offset, to suit steer, drive or trailer position.
• Load rating: matched to the tyre load index and axle load — the load certificate is supplied with your quote.

Applications

Trucks, tractor heads and semi-trailers: Tractor heads, heavy rigid trucks and semi-trailers — the most common tubeless size on HOWO and Shacman long-haul trucks. Compatible with HOWO / Sinotruk, Shacman, FAW, Dongfeng, Foton, Beiben and European trucks (Volvo, Scania, MAN, Mercedes-Benz, DAF, Renault, Iveco) with the matching hub.

Matching tyres in our catalogue: Aeolus ADR35 — 295/80R22.5 Trailer Tyre, Doublestar DSR266 — 295/80R22.5 Drive Tyre, Goodride CR960A — 11R22.5 City Steer Tyre, Wanli AS601 — 11R22.5 Urban Trailer Tyre.

Shandong TK service: rims and tyres can be supplied mounted and balanced as complete wheels, packed per axle set, and shipped worldwide from Liangshan, China. Send us your truck model, axle position and tyre size for a tailored quote.
