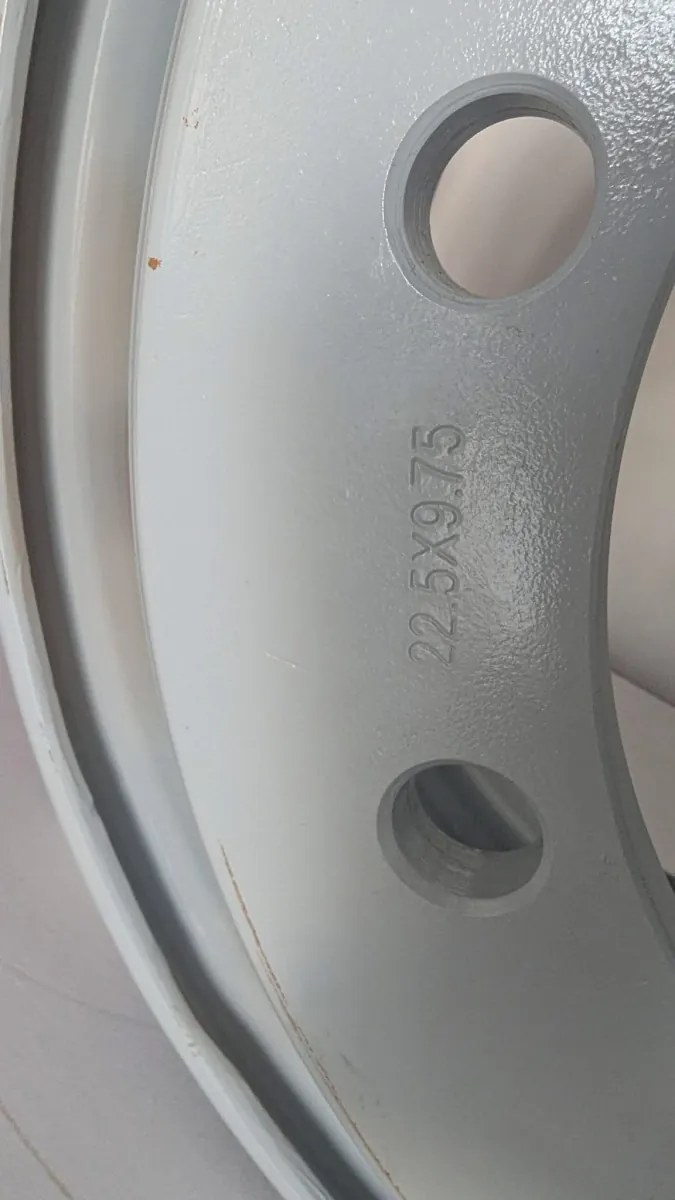

Tubeless Truck Wheel Rim 22.5 × 9.75

Description

Tubeless wheel rim 22.5 × 9.75 for 12R22.5, 13R22.5, 315/80R22.5 tyres. Heavy 6×4 / 8×4 tractor heads, dump trucks and heavy semi-trailers — wider seat preferred on the Chinese market for 315/80R22.5 and 13R22.5 tyres.

Construction & fitment

• Construction: One-piece drop-centre rim, 15° tapered bead seat (tubeless).
• Tyre sizes: 12R22.5, 13R22.5, 315/80R22.5.
• Stud pattern: 10 studs, PCD 335 mm, centre bore 281 mm (ISO hub-piloted — standard on HOWO, Shacman and European trucks). JIS 10 × 285.75 mm and other patterns on request.
• Material: High-strength steel (standard) or forged aluminium (lighter, on request), shot-blasted and powder-coated.
• Offset: single or dual-wheel offset, to suit steer, drive or trailer position.
• Load rating: matched to the tyre load index and axle load — the load certificate is supplied with your quote.

Applications

Trucks, tractor heads and semi-trailers: Heavy 6×4 / 8×4 tractor heads, dump trucks and heavy semi-trailers — wider seat preferred on the Chinese market for 315/80R22.5 and 13R22.5 tyres. Compatible with HOWO / Sinotruk, Shacman, FAW, Dongfeng, Foton, Beiben and European trucks (Volvo, Scania, MAN, Mercedes-Benz, DAF, Renault, Iveco) with the matching hub.

Matching tyres in our catalogue: Triangle TR685 — 315/80R22.5 Long-haul Drive, Linglong KTW01 — 315/80R22.5 Long-haul Steer, Hifly HH301 — 12R22.5 City Drive Tyre, Annaite 366 — 12R22.5 Urban All-Position.

Shandong TK service: rims and tyres can be supplied mounted and balanced as complete wheels, packed per axle set, and shipped worldwide from Liangshan, China. Send us your truck model, axle position and tyre size for a tailored quote.
